Description

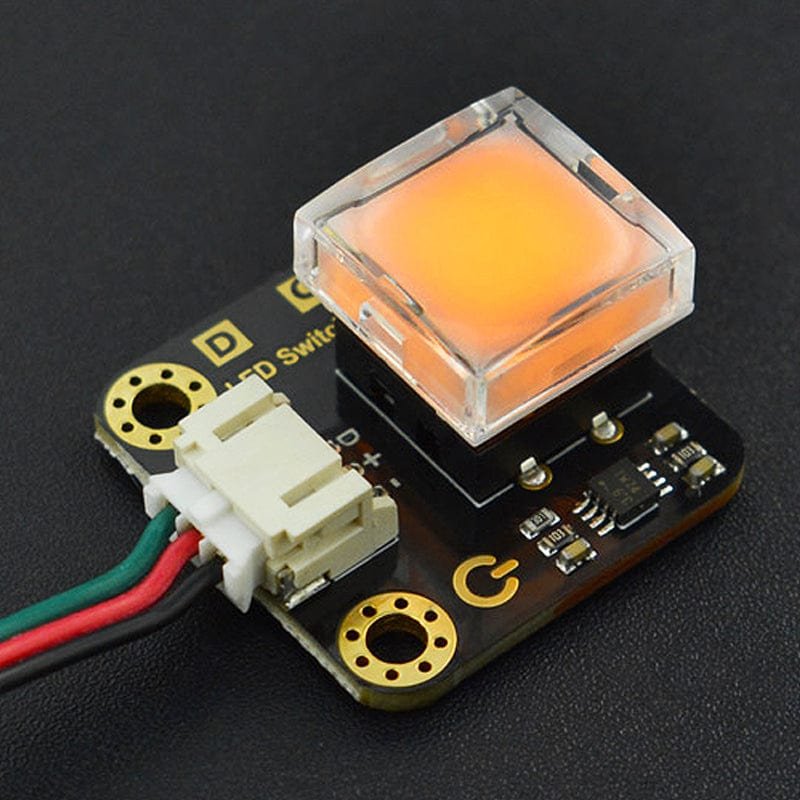

This is a simple LED-illuminated self-lock switch button. It??s just like a basic switch button, but it lights up color(red/yellow/green/blue/white) when pressed down, which gives you visual feedback. These little buttons can be used with micro:bit to realize various fun interactive projects, such as, switch, backlight keyboard, music player panel, and recording control panel.

Note: The module comes with self-lock function. When the button is pressed down, the module outputs high, and the LED lights up. When being pressed again, the module outputs low and the LED turns off.

Features

• Internal LED turns on when the button is pressed down

Connection Diagram – Micro:Bit with?IO Extender

Specifications

• Operating Voltage: +3.3-5V (3.3V is recommended)
• Output: digital
• Connector: PH2.0-3-Pin
• Dimension: 27 x 26.5mm
• Colours Available: red, yellow, green, blue, white

Resources

• Product wiki

Package Contents

• 1x Gravity: LED Switch
• 1x Digital Sensor Connector
