Description

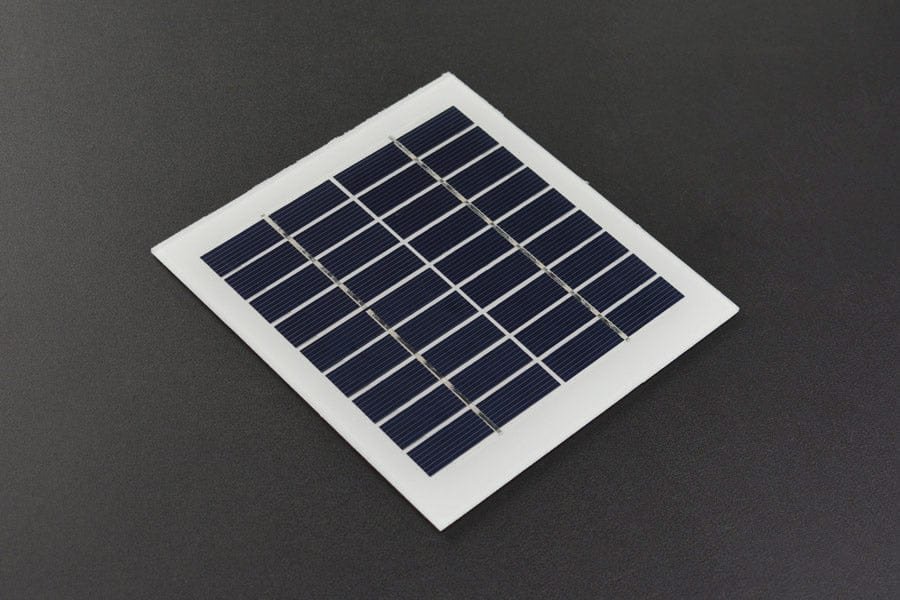

Need a clean energy source for your project? Check out this compact,high quality,high output endurable solar panel.The peak power output is around 9V at 220mA.Can also be used in series to work as recharger for 12V batteries.Ultra-white glass lamination process provides an efficient and waterproof surface for the panel.The back of the panel has separate aluminium wires.Note:The above refers to the electrical performance parameters measured under standard test conditions, namely: light intensity 1000W / ?O, spectrum AM1.5, cell temperature 25 ??

Applications

• Solar Powering
• Transport sector
• Communication / communications

Specification

• Working voltage: 9V
• Operating Current: 220mA
• Open circuit voltage: 9.6V
• Short circuit current: 500mA
• Power: 2W
• Use of the environment: -40 ?? ~ 80 ??
• Performance: corrosion, moisture
• Size: Length 135mm(5.31″) X width 125mm(4.92″)

Shipping List

• Solar Panel (9v 220mA)x1

Projects

Project 1. Sunflower – Arduino Solar Tracker
In modern solar tracking systems, the solar panels are fixed on a structure that moves according to the position of the sun. In this project it designs a solar tracker using two servo motors, a light sensor consisting of four mini photocells and Arduino UNO board.
Hardware Components:

DFRduino UNO R3

I/O Expansion Shield for Arduino

DF05BB Tilt/Pan Kit (5kg)

Mini Photocell x 4

Resistor 100kOhm x 4

DFRobot Solar Panel
