Description

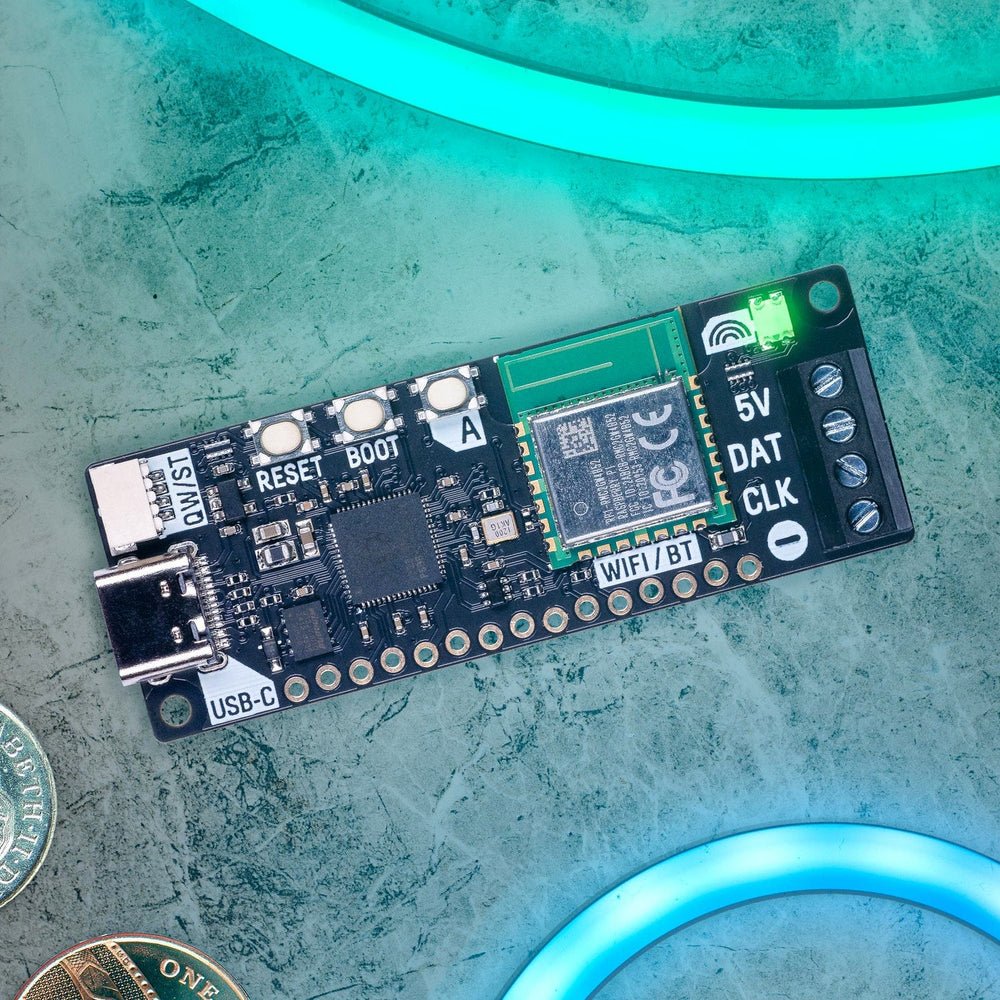

Plasma 2350 W is powered and programmable by USB-C and, because USB-C is capable of drawing up to 3A of power, that’s enough to power a healthy chunk of LEDs. There’s a useful button that you could use to switch between effects, plus a reset button and an onboard RGB LED. We’ve also popped a QW/ST connector on there, to make it super easy to plug in Qwiic or STEMMA QT breakouts.

The ‘W’ version comes equipped with a Raspberry Pi RM2 module, which gives it 2.4 GHz wireless and Bluetooth connectivity. Use it to control Plasma 2350 W remotely, hook it up to online APIs or integrate it with your home automation.

You can buy a Plasma 2350 W on its own, OR in a Starter kit with a USB-C cable and some super-cool LED stars, so you can get started lighting stuff up right away.

Features

• Powered by RP2350A?(Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
• 4MB of QSPI flash supporting XiP
• Compatible with 5V WS2812/Neopixel/SK6812 and APA102/Dotstar/SK9822 LEDs
• Screw terminals for attaching your LED strip.
• USB-C connector for power and programming (3A max)
• Raspberry Pi RM2 module (CYW43439), supporting IEEE 802.11 b/g/n wireless LAN, and Bluetooth
• Qw/ST (Qwiic/STEMMA QT) connector
• Reset, BOOT and a user button (the BOOT button can also be used as a user button)
• RGB LED
• Fully-assembled (no soldering required)
• Measurements: approx 61 x 22 x 12mm (L x W x H, including connectors)
• Programmable with C/C++ or MicroPython

Resources

• RP2350 MicroPython builds and examples
• Schematic
• Pinout PDF

Pinout

Package Contents

Board Only

• 1x Plasma 2350 W

Starter Kit

• Plasma 2350 W
• 1x USB-C Cable
• 1x 10m RGB LED Star Wire
