Original Grove – Light Sensor v1.2 – PartsCountry

Description

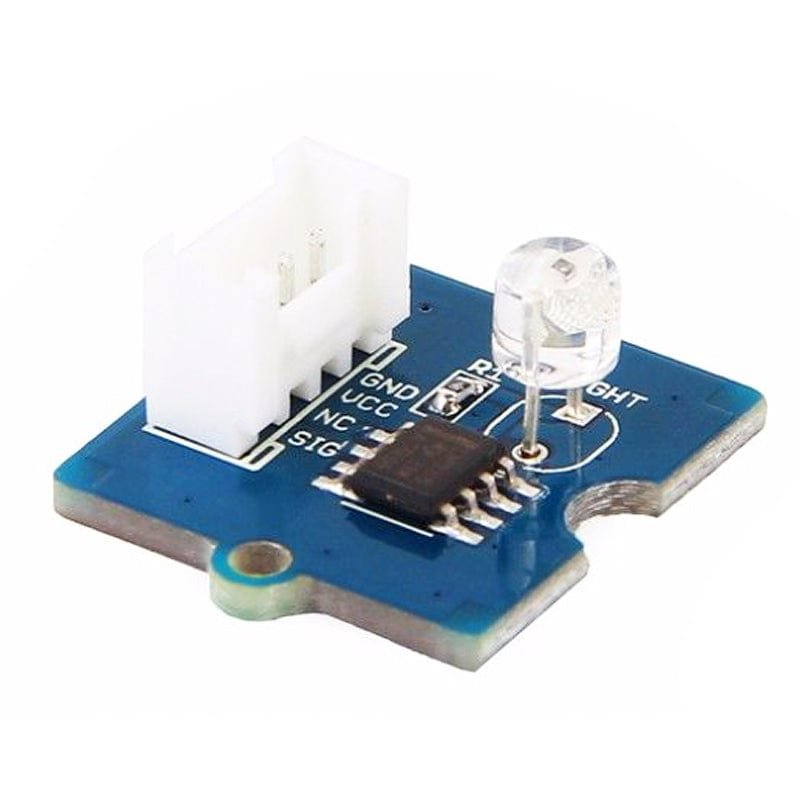

As an updated version of Grove – Light Sensor 1.0, the Grove – Light Sensor v1.2 is also aimed at measuring light levels, however with higher reliability and sensibility. It is an analog module and output various electrical signals which can be converted to different ranges (It depends on the Analog-to-Digital-Converter on your controller board. For example, it can output 0-255 for an 8-bit ADC). It integrates a high-sensitive and reliable phototriode, and just like other grove modules, it is interfaced with Grove port which can save you a lot work in wiring.

Features

• Easy to use with Grove port interface
• High reliability and sensibility
• Small footprint
• Wider Spectrum
• Product number: Seeed?101020132

Specifications

• Operating voltage(V): 3-5 V
• Operating current(mA): 0.5-3 mA
• Response time: 20 ~ 30 milliseconds
• Peak Wavelength: 540 nm
• Phototriode: GL5528 (datasheet)

Resources

• Product?Wiki
