Description

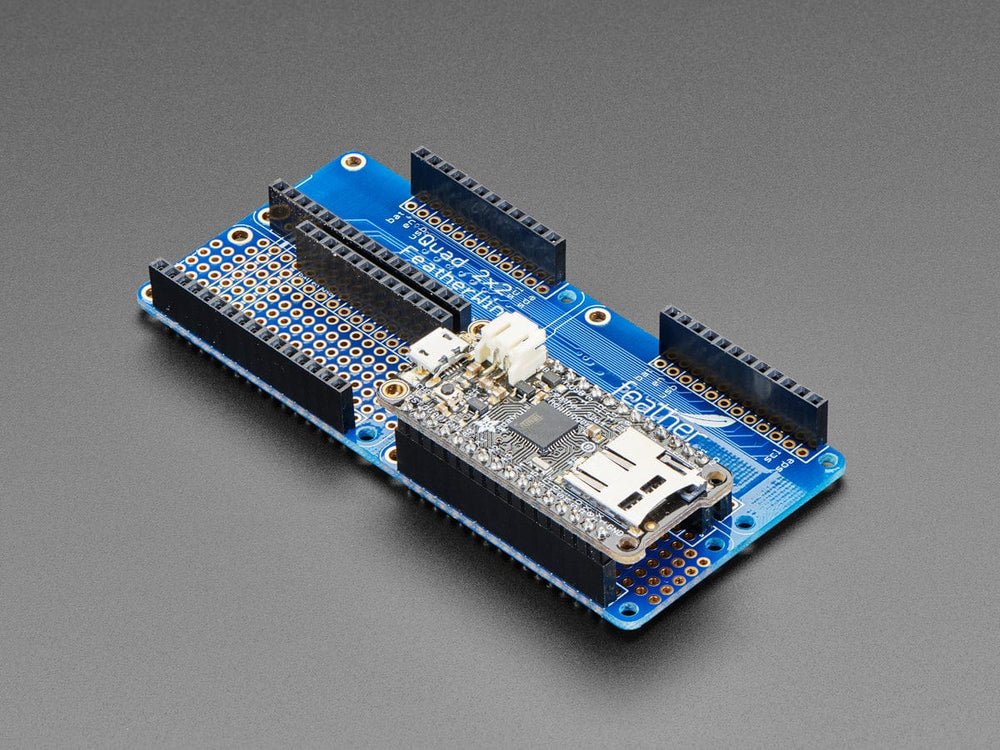

This is the FeatherWing Quad 2×2 – a prototyping add-on and more for all Feather boards. This is similar to our FeatherWing Proto except there are four! The magic of the Quad comes when you want to connect your Feather to three other Feather Wings without needing any stacking headers. The boards are all set up in a 2×2 grid, thus the name The Quad comes with:

• 1 Quad 2×2 Wing PCB
• 4 sets Feather Female Headers

The Quad, like the Proto, has three breakouts for each pin on a Feather, as well as a bunch of plain grid proto holes. Also, the four sets of pins are cross connected and for GND and 3.3V, we give you a full strip of connected pads.

You’ll need to solder on the female headers to the PCB, the Quad comes as a mini kit!

We also have a Quad FeatherWing as a side-by-side kit for a slightly different arrangement

Check out our range of Feather boards here.

Technical Details

• PCB dimensions (unassembled): 103mm x 47mm x 1.6mm
