For Dell E-Port Plus II Docking Station / Port Replicator Kit With USB 3.0 and Power Adapter – PVCK2

Description

NEW Dell E-Port Plus II Docking Station Kit with USB 3.0 ports; for Latitude E-Family and select Precision Workstation Laptops/Notebooks – a quick way to transform your laptop into a desktop that is already plugged into an external mouse, keyboard, printer, etc.. Supports multiple monitor setup!

INCLUDES 130-Watt Power Adapter

Compatible Dell Laptops:
-Latitude E4310, E5510, E5410, E6520, E6420, E6320, E5520, E5420, E6220, E5530, E6330, E6230, E5430, E6530, E6430, E6430s, E5520M, E7240, E7440, E6540, E6440, E5440, E5540, E5250, E7250, E7450, E5450, E5550, E5570, E5270, E5470, E7270, E7470, E6510, E6500, E6410, E6400, ATG E6410, ATG E6400, E5500, E5400, E4300, E4200
-Precision M2400, M4400

Note: The USB 3.0 Speed only works for the later systems with native USB 3.0 support. (otherwise it will function at USB 2.0 speeds).

P/N: PVCK2, 0PVCK2, Y72NH

Maximize your workspace with the Dell E-Port Plus II. This E-Port Plus Replicator gives you a comfortable work space where you can plug a keyboard, mouse and monitor to the port replicators and use your laptop like a desktop! Simplified connectivity facilitates a single interface to connect to your printer, monitor or other peripheral devices. It also gives you ease of mobility wherein you need not unplug and re-plug multiple peripherals to access your printer or other devices. This product is tested and validated with Dell Systems. It is supported by Dell Technical Support, when used with a Dell system.

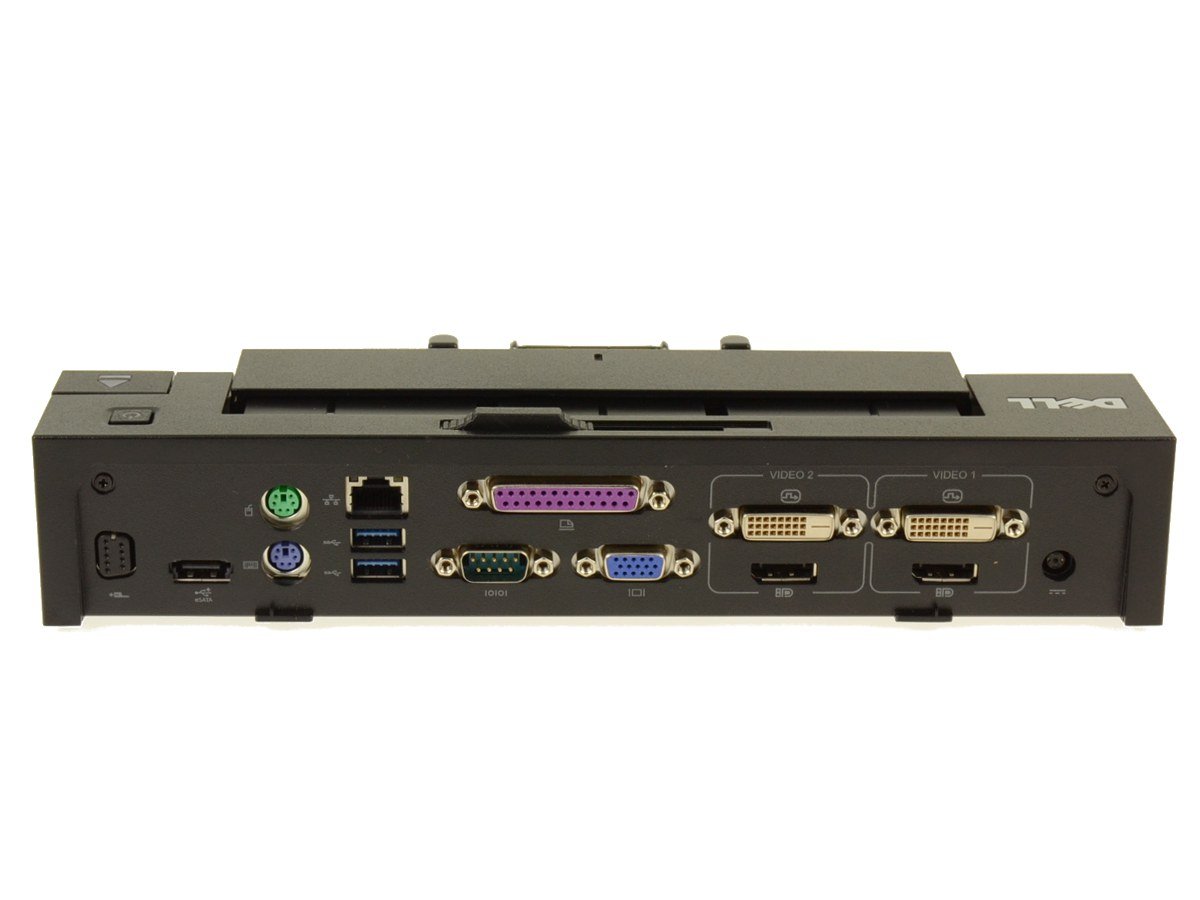

Product Specifications:
Optimized for dual monitors with support for VGA
2 x DVI /
2 x Display Ports
1 x VGA port
1 x Serial
1xParallel
2 x PS/2
2 x USB 3.0 (located on the back side)
3 x USB (2.0)
1 x eSATA/USB port
Supports up to two 30" LCD monitors with native resolution of 2560×1600 via display ports

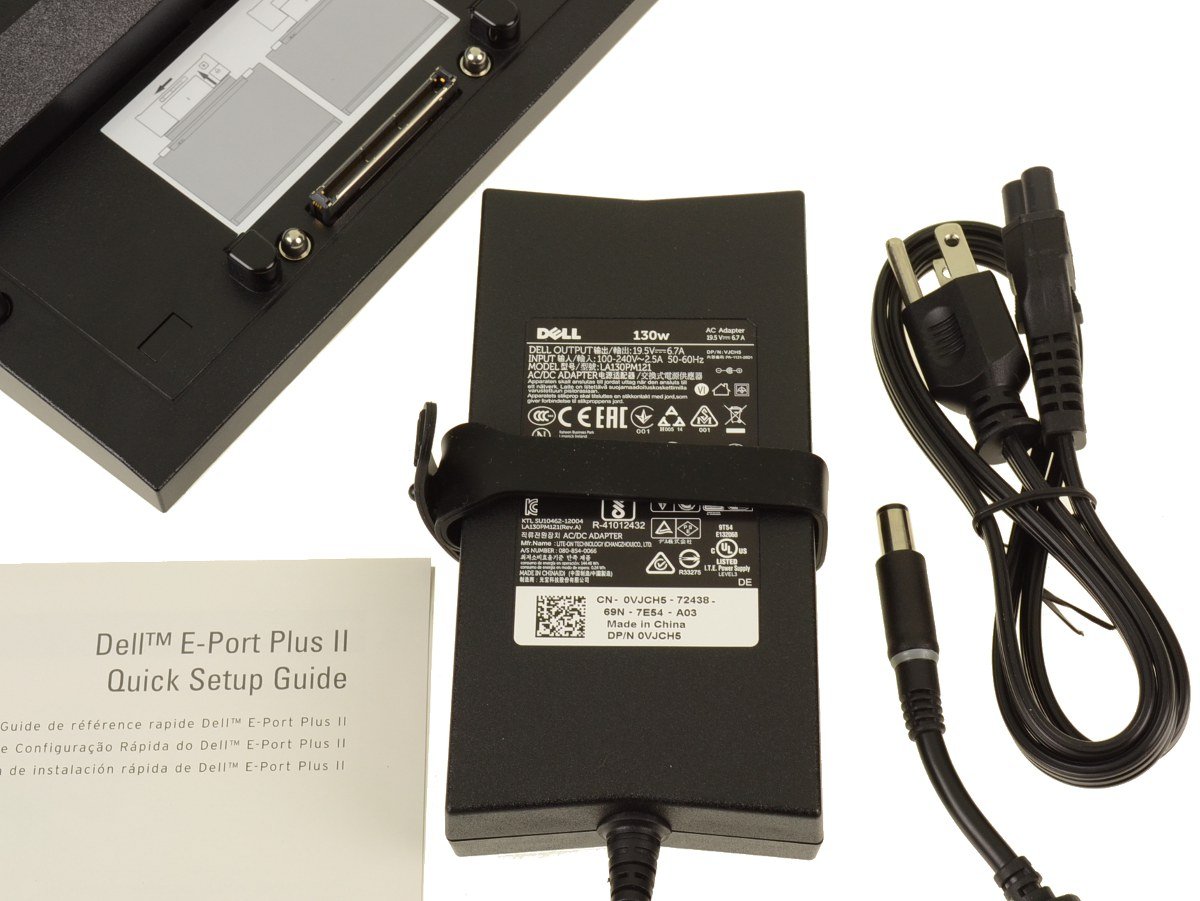

Included : 130-W Power Adapter with power cord
Quick Setup Guide

IMPORTANT NOTE: This docking kit comes with a PA-4E 130-watt power adapter- an will NOT work with the Precision 17 (7710), M6400, or M6500 workstations, there is just not enough wattage. If you have either the 17 (7710), M6400, or M6500, you can find the E-Port Plus Dock Kit with the higher-wattage power adapter HERE.
